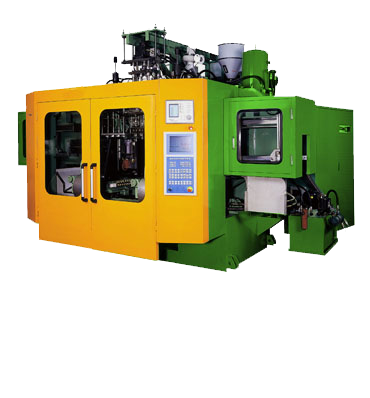

AV-PBSS905/1005 (S/D/T/Q)


  • Powerful, crank-type mold clamping system combined with German linear motion guides for outstanding performance and high efficiency.
  • This series is designed to meet high production requirements.
  • Available to equip with auto de-flashing device and take-out robot to achieve fully automatic, highly efficient production.
  • 10″ TFT colorful LCD screen with human-machine interface control system. It provides powerful functions, convenient and user-friendly operation.


Model  Max. Product Capacity Min./Max. Dia. Of Product Screw Dia. Outer Dia. Of Die Mouth Mould Center Distance
AV-PBSS-905S 1000-5000cc 75-200mm 90mm 150mm -
AV-PBSS-905D 600-2700cc 60-140mm 90mm 80mm 160mm
AV-PBSS-905T 200-1000cc 30-100mm 90mm 50mm 120mm
AV-PBSS-905Q 50-500cc 20-80mm 90mm 40mm 100mm
AV-PBSS-1005S 2500-10000cc 100-250mm 100mm 200mm -
AV-PBSS-1005D 1500-5000cc 80-180mm 75mm 135mm 250mm
AV-PBSS-1005T 600-2700cc 60-140mm 100mm 80mm 160mm
AV-PBSS-1005Q 200-1000cc 30-100mm 100mm 50mm 120mm
  • Specifications subject to change without notice.
